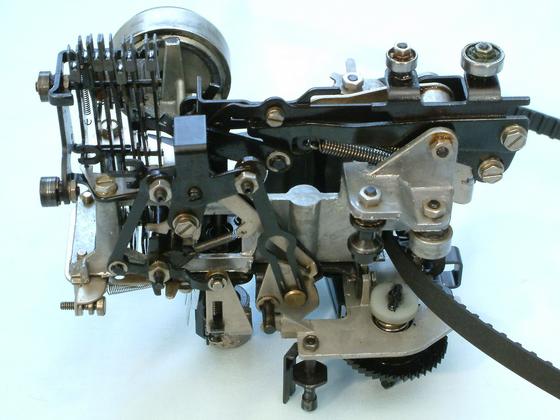

This is a closeup of the right side of the typing unit. The unit is upside down from installed position. The U levers at the top left decode from the codebars which character to print.
