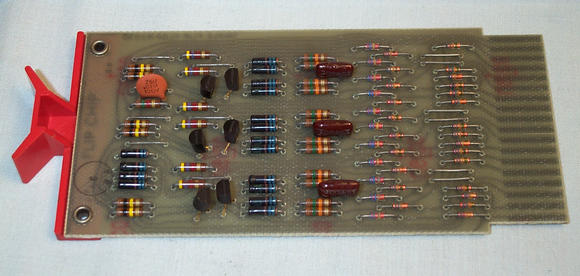

This board is a triple flip flop where each flip flop stores 1 bit of information. It has a clear input and a gated set.
This board cost $28 in 1968.
Schematic of board as a scanned PDF file.
