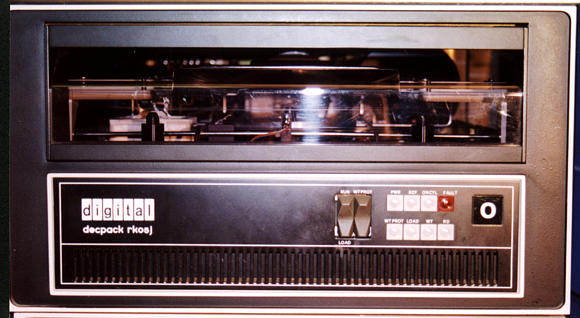

This is the front of the RK05 drive. The switches are used to spin up the drive and write protect the disk. The lights give the drive status.
