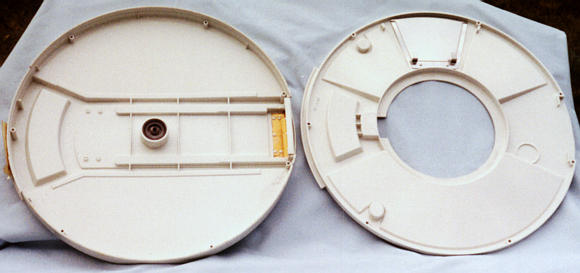

Inside of RK05 disk pack case. The brown button on the left half pushes the pack down against the bottom case to try to prevent dirt entry. At the right side of it is the door to allow the heads to enter. The lower case on the right has a silver door at the top which is pushed open by the air from the blower when in the drive.
