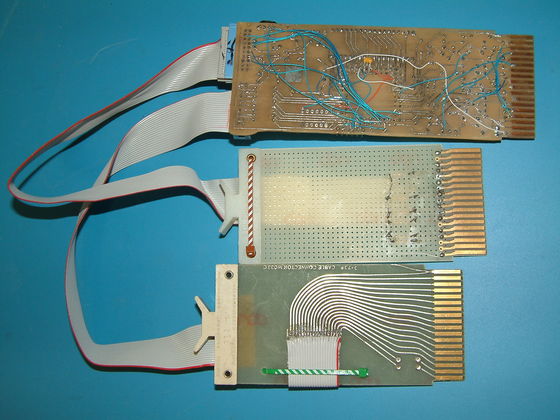

The wires to the edge fingers are a design opps. The rest are because I couldn't route them reasonably without plated through vias which the do it yourself etching I used doesn't provide.
