PDP-8 (Straight 8) Backplane Partially Disassembled

Current size small. Select new size for picture   Small ( 68K)  Medium (110K)  Large (1.4M)

Current size small. Select new size for picture   Small ( 68K)  Medium (110K)  Large (1.4M)

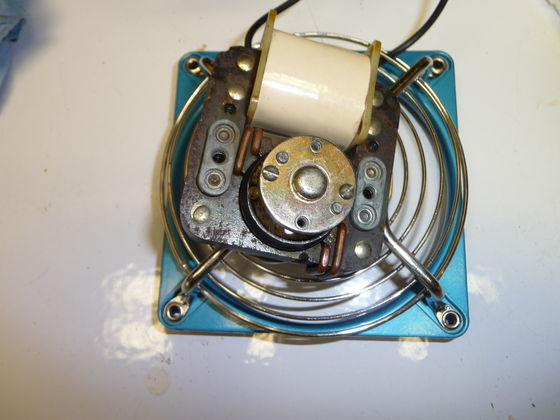

Starting disassembly for cleaning. The two screws holding the fan blades and the blades have been removed and the motor unscrewed from the fan guard. The two remaining screws hold the plate that covers the motor shaft. If you remove those screws and the plate then you can get to the clip which holds the rotor on.
