PDP-8 (Straight 8) Functional Restoration Logic Analyzer Hooked up

Current size small. Select new size for picture   Small ( 64K)  Medium (124K)  Large (1.6M)

Current size small. Select new size for picture   Small ( 64K)  Medium (124K)  Large (1.6M)

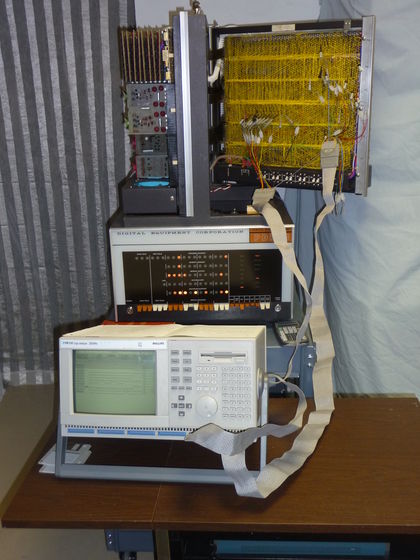

This is a logic analyzer hooked up to the PDP-8 for troubleshooting. The logic analyzer allows viewing of many signals at once though it only displays the binary value of the signal. The scopes used previously can display 2-4 signals showing the actual voltage level. The logic analyzer allowed viewing all the program counter bits and other relevant signals.
