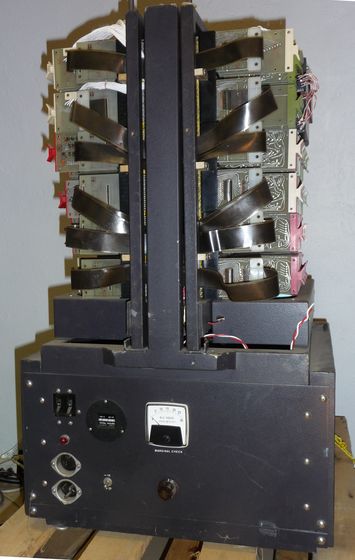

PDP-8 (Straight 8) Initial Inspection Without Cover

Current size small. Select new size for picture Small ( 49K) Medium ( 91K) Large (1.3M)

The red and white wire that powers the fan has been cut. Since the top bracket holding the backplanes was missing and the plastic washers weren't between the card backplanes and the bottom support like on another Straight 8 the wires may have been cut to allow removal of the backplanes at some time.
