PDP-8 (Straight 8) Initial Inspection Memory Side Without Cover

Current size small. Select new size for picture   Small ( 61K)  Medium (121K)  Large (1.6M)

Current size small. Select new size for picture   Small ( 61K)  Medium (121K)  Large (1.6M)

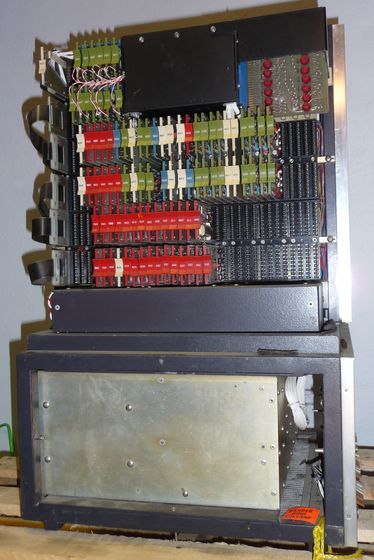

The black box at the top is the 4096x12 bit core memory of the computer. Most of the cards are to support the memory. The rest are for the teletype interface. This side also has some cards that appear to be in the wrong spot.
