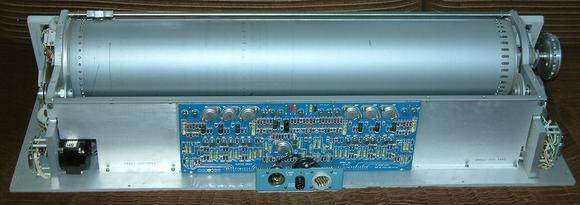

This is the back of the Calcomp 563 incremental plotter. The circuit board converted the movement signals from the PDP-8 to drive signals for the stepper motors to move the paper and pen.
