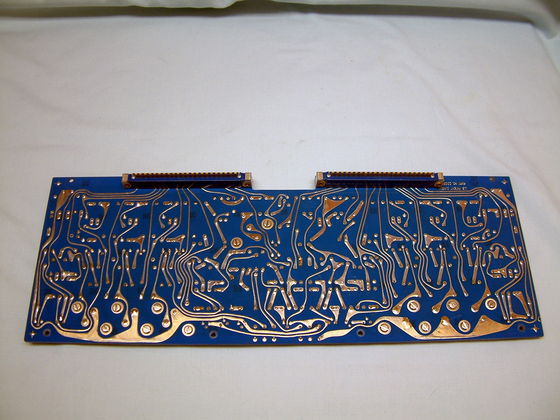

This is the back of the main control circuit card for the plotter. It plugs into the power supply assembly which then plugs into the plotter.
