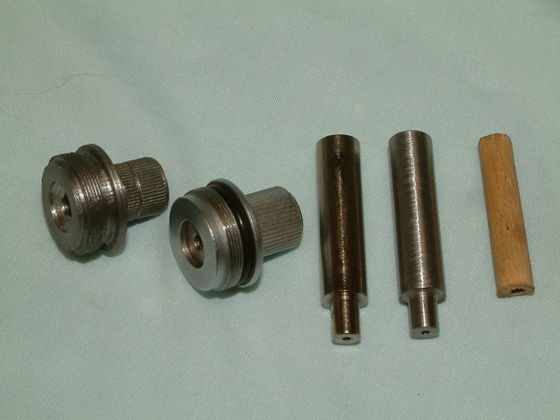

These are the parts after all the turning was finished on the lathe. The original parts are in the middle and the outer parts are the replacement parts. The wood piece goes in the cylinder to properly align the ball point pen cartridge.
