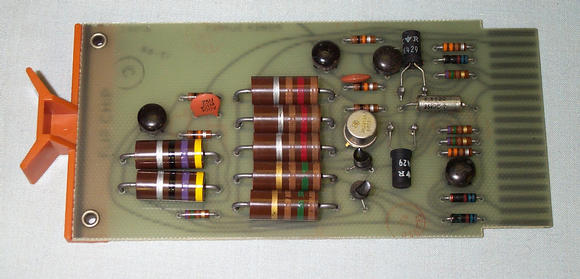

This board provided -10 and -7 volts for the A202 dual analog preamplifier. This board is not in the standard building block catalog. It is used in the AX08 laboratory peripheral. Schematic of board as a scanned PDF file.
