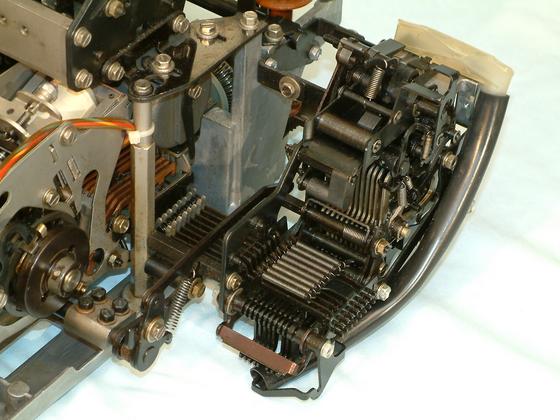

This is a closeup of the rear of the paper tape punch. The paper tape is fed in below the roller in the middle. The value to punch comes from the codebar extensions at the bottom of the punch.
