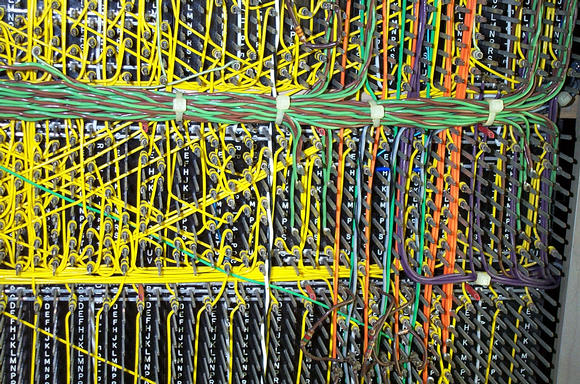

This is a closeup of the AX08 wirewrap backplane. You can see the 24 gauge wire wrapped around the .030x.060 inch pins. You can also see resistors and diodes clipped on to pins to configure cards.
