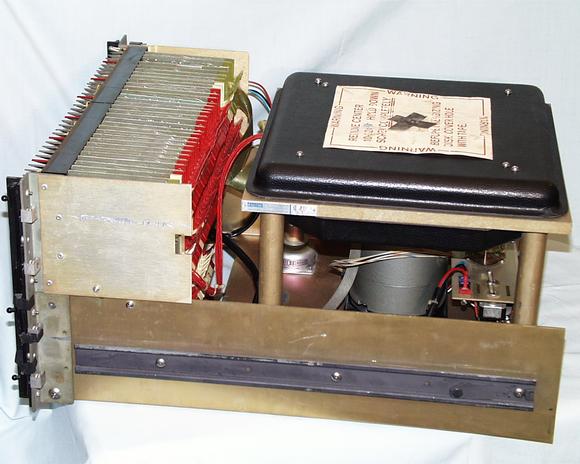

This is the right side view of the DF32 disk drive. The drive motor (1/10 HP, 1800 RPM, 2.2 amp) is hanging below the black disk case with a heavy ground braid tying it to the rest of the unit. The black bars on the side are the chassis slides for holding it in the rack but allowing it to be slid out a couple feet for maintenance but still held into the rack.
