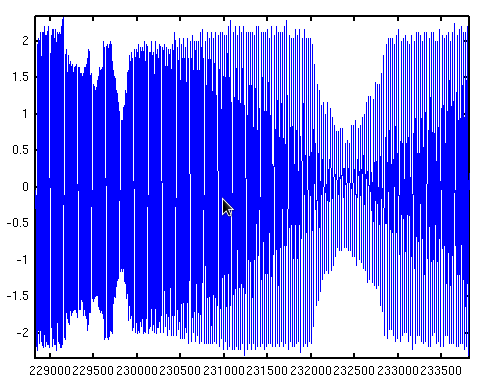

This is a closeup of one of the dropouts. The signal is weak but still recoverable from the captured data. The drive electronics would be unlikely to properly handle this dropout.
