PDP-8 DF32 Disk Drive Modified W103 schematic

Current size small. Select new size for picture   Small ( 46K)  Medium (102K)  Large (580K)

Current size small. Select new size for picture   Small ( 46K)  Medium (102K)  Large (580K)

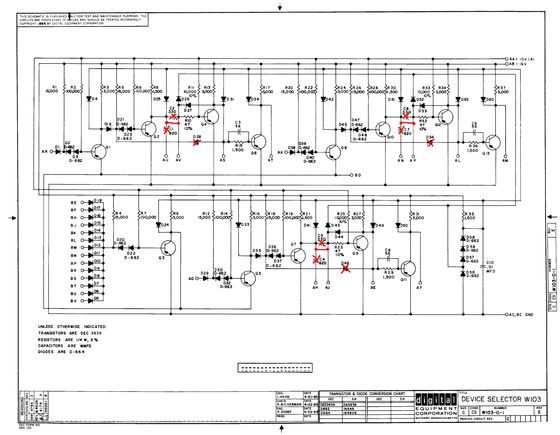

This is the schematic marked up with the changes made to the W103's in one of my DF32's. For some reason 3 capacitors were removed and jumpered across, 3 capacitors removed, and 3 diodes removed. It appears they changed the outputs from being pulse amplifiers to DC coupled level outputs.
