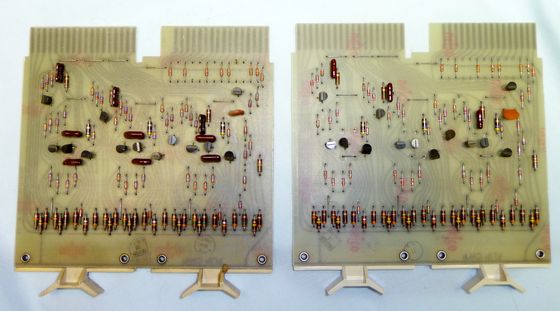

Time to play can you identify the differences. On the left is a normal W103 and on the right the W103 in the DF32 that I got with my Straight 8. For some reason 3 capacitors were removed and jumpered across, 3 capacitors removed, and 3 diodes removed.
