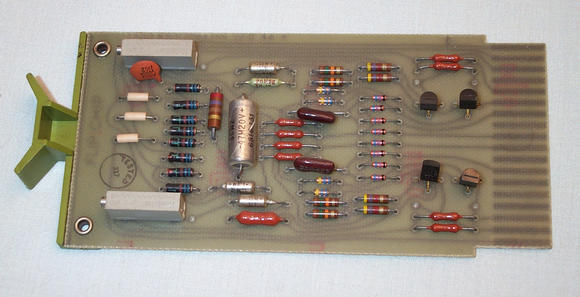

This board is used as the disk head preamplifier in the DF32 disk drive. The amplifier gain is adjustable from 1 to 10 and has a bandwidth of 200 kHz to 1 MHz.
Schematic of board as a scanned PDF file.
