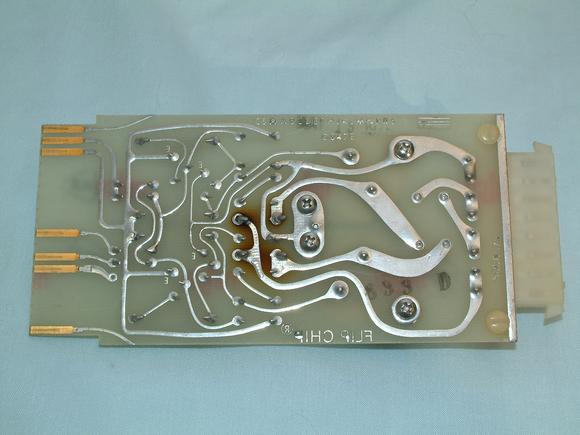

This is the back of the G847 dual motor voltage control. In the middle of the board you can see more of the black damage from when the 1N5624 diode shorted and overheated.
