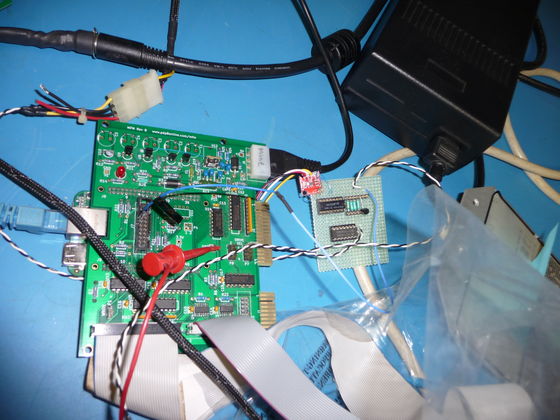

The perf board is my buffer board which has an op amp to increase the voltage from the DAC board glued to the corner. The other chip is a CMOS switch to disconnect the voltage under control of the BeagleBone. The enable line for it is connected to J7 pin 5.
