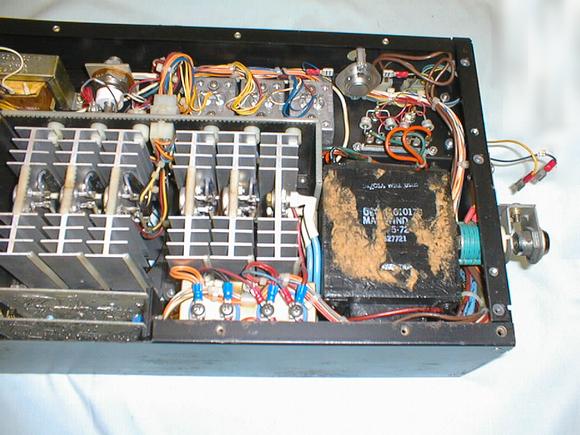

This is a close up of the h724 power transformer section. The parts at the top are transistors for the voltage regulators.
View from other side. ( 47K) Overall view with description ( 35K)
