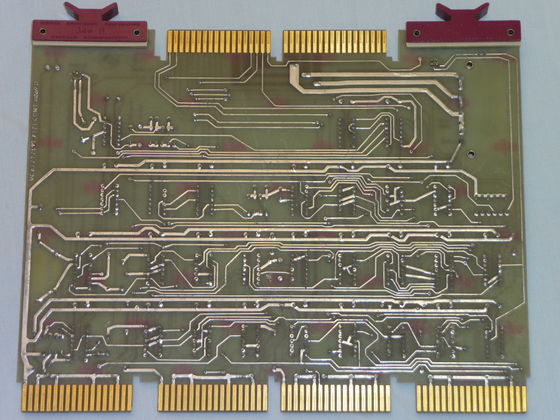

This is the back of the M869 point plot display control board. It is used with the M885 (100K) point plot display D/A board to drive X/Y monitors like the VR14 monitor Front of board ( 85K)
