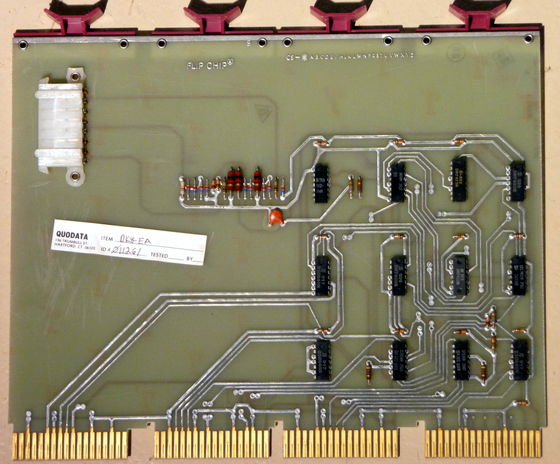

This is the front of the M882 real time clock board.. It generates an interrupt at the AC line frequency. It allows the PDP-8 to know how much time has elapsed. The option is also known as the DK8-EA.
