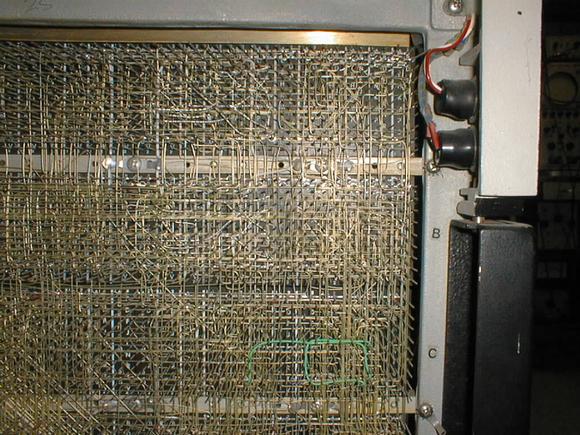

This is a closeup of the wirewrap backplane showing the actual wire wrap. The wires are 30 gauge wires and about 1 inch of the ends are stripped and wrapped around the posts. The posts are normally .025 inch square.
