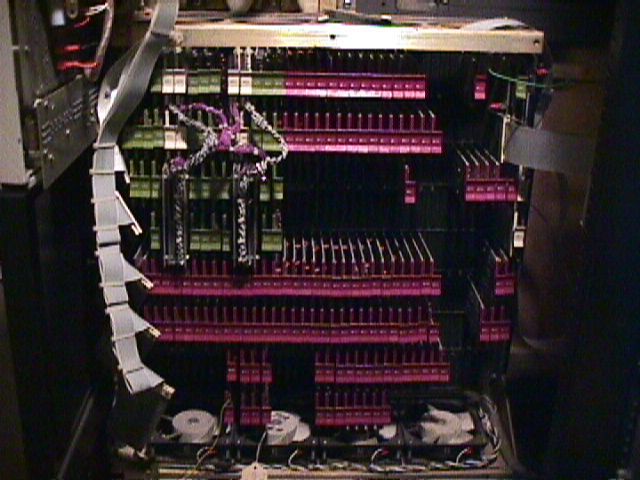

This is the cards in the PDP-8/I processor. The Magenta M-Series cards are TTL logic, the Green G Series cards are interface cards for the core memory. The White W Series cards are interface boards. In the upper right is the back of the front panel ( 46K) . At the bottom are are row of fans to keep it all cool.
