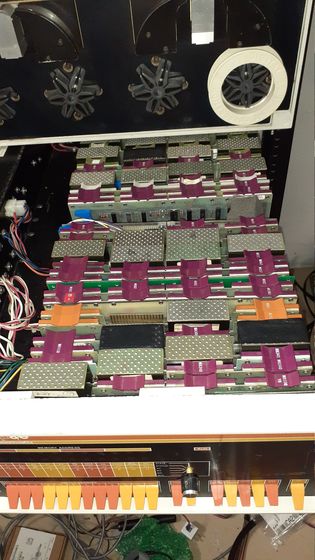

From front to back.
- Processor cards with extended arithmetic option.
- Orange A/D cards
- M8365 printer interface
- M882 real time clock. Not needed for this demo
- M837 extended memory and timeshare
- M863 Digital I/O, interface to sample and hold
- 4 card TM8E interface to TU10 tape drive
- M840 high speed paper tape reader/punch. Not needed for this demo
- My remote control card for PDP-8. Not needed for this demo
- M8655 serial interface to terminal
- M8357 RX02 floppy interface
- White 16k SRAM memory
- 3 card RK05 interface. Not needed for this demo
- 3 card 4k core memory
- M849 RFI shield. Should have been between memory and other cards
- 3 card 4k core memory
- 3 card 8k core memory
- TSC8 ETOS multiuser operating system card. Not used for this demo
- M8320 bus terminator
