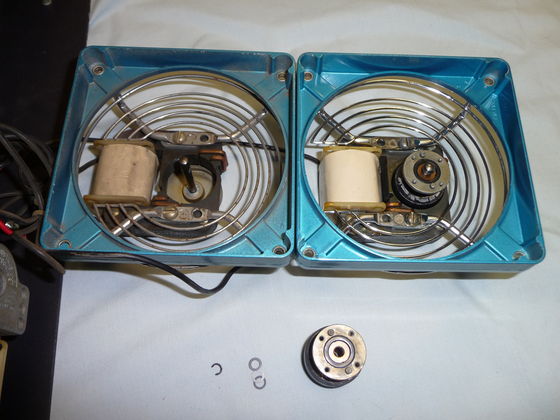

The left fan was disassembled so the bearing could be checked and a few drops of oil applied to the felt inside the motor rotor. The washers and clips that held the rotor on are next to it. Make sure you get them back in the same location and order and don't shoot the C clip across the room removing it. Looks like I forgot to take a picture with all the parts together. While the fan was apart I cleaned everything and removed the rust from the chrome plated fan guard. The right fan has been cleaned.
