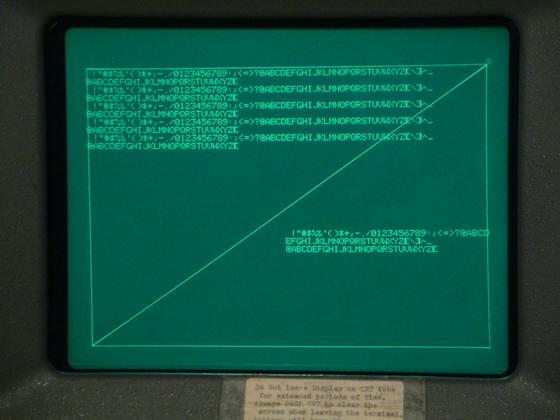

This is a sample of all the characters displayable with the internal character generator. It also shows lines drawn around the perimeter and the cursor in the upper right.
Video of this picture drawing (516K)
