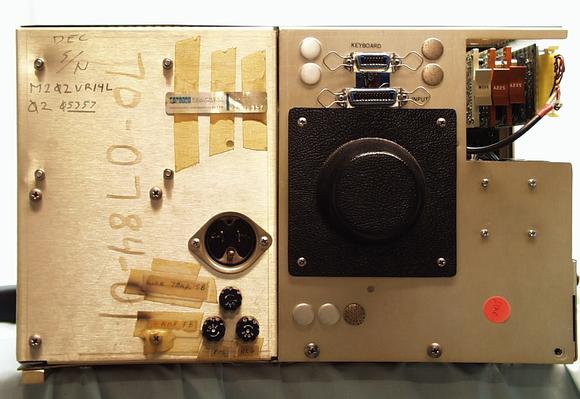

Back of VR14 Monitor, covers removed. Taped on labels are as I received the unit. The upper keyboard connector is for an optional keyboard which was not present with unit and not supported by my controller. The lower input connector is the connection to the card set in the PDP-8. In the bottom center are the fuses which were supposed to protect the power transistors but only blow after the transistors are damaged. Above the fuses is the AC input which is a US style plug so a normal extension cord can be used.
