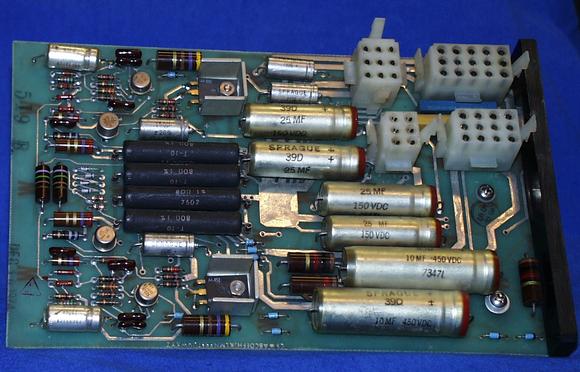

Front of the G8360 power supply and regulator board. This controls generation of the main ±22 volt deflection power supply with the power transistors ( 40K) plus various other voltages for the CRT.
