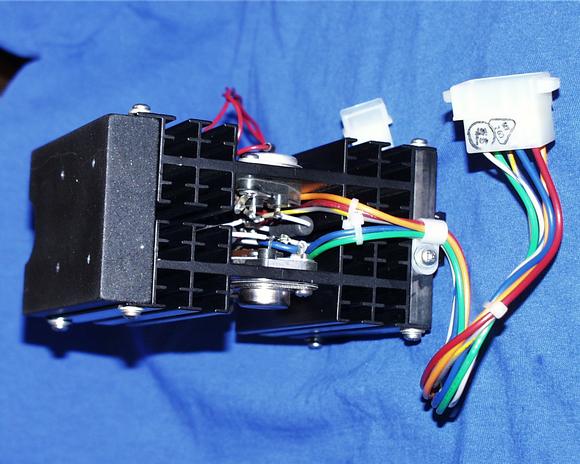

View of internal wiring of power supply heat sink. These transistors blow very easily, several had been replaced and more were blown when I got it.
A fan blown directly on this heat sink to keep it cool. These transistors regulate the ±43 volt raw power to the regulated ±22 volt used for CRT deflection. They are controlled by the G8360 regulator card ( 45K) .
