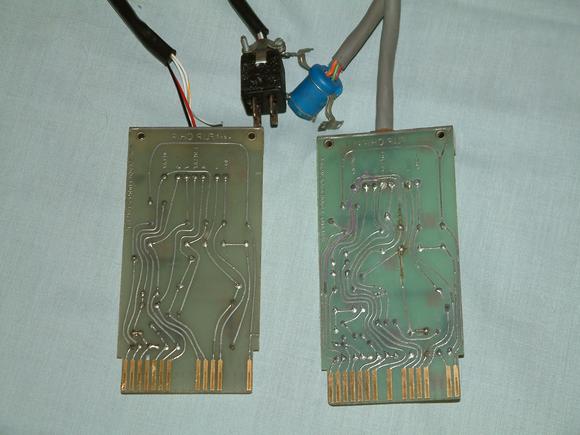

This is the back of the W076 Teletype Connector. The newer W076B version is on the left and the W076D version is on the right. The previous owner of the W076D apparently had some problem since the card had several repairs to tracks that got burned off.
