W Series PDP-8 Board information and W532 Dual AC-Coupled Difference Amplifiers

Current size small. Select new size for picture Small ( 29K) Medium ( 60K) Large (217K)

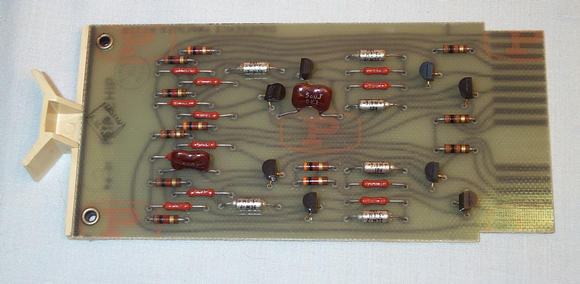

This board contains two AC-coupled differential amplifiers for use with many magnetic sense systems.

Specifications
Output voltage no signal -11 to -12

Common mode input voltage -5 to +5
Common mode voltage gain .37
Difference mode voltage gain 88 to 96
Rise/Fall time 250/400 ns
3db bandpass 1kHz to .8 MHz

This board cost $30 in 1968.

Specifications
Output voltage no signal	-11 to -12
Common mode input voltage	-5 to +5
Common mode voltage gain	.37
Difference mode voltage gain	88 to 96
Rise/Fall time	250/400 ns
3db bandpass	1kHz to .8 MHz

Back of board ( 29K)
